S-type draft elbow and tailrace. The flow channel of the S-Type Tubular Tubrine is axial, and the water flows parallel to the turbine axis to the runner.
Net Head: 10m
Design Flow: 7.08m3/s
Capacity： 500KW
Turbine real machine efficiency: 88.4%
Rated Efficiency of Generator: 93%
Rated rotating speed: 720rpm/min
Generator: Brushless Excitation
Blade Material: Stainless Steel
Installation Method: Horizontal

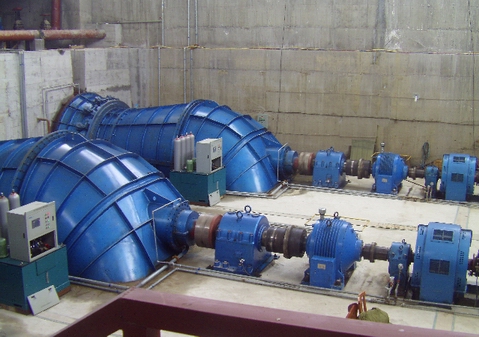

S-Type Tubular Turbine, also known as shaft-extension turbine, adopts horizontal axial arrangement. The obvious structural feature is that the guide vanes are arranged at 65° to the centerline of the unit, and an axial conical water guide mechanism is used. S-Type Tubular Tubrine flow channel is composed of inlet pipe, seat ring, conical water guiding mechanism, runner chamber, tailrace cone, S-type draft elbow and tailrace. The flow channel of the S-Type Tubular Tubrine is axial, and the water flows parallel to the turbine axis to the runner.
1.Comprehensive processing capacity. Such as 5M CNC VTL OPERATOR, 130 & 150 CNC floor boring machines, constant temperature annealing furnace, planer milling machine, CNC machining center ect.
2.Designed lifespan is more than 40 years.
3.provide one time free site service,if the customer purchases three units (capacity ≥100kw) within one year, or the total amount is more than 5 units. Site service included equipments inspection, new site checking, installation and maintainance training ect,.
4.OEM accepted.
5.CNC machining , dynamic balance tested and isothermal annealing processed,NDT test.
6.Design and R&D Capabilities,13 senior engineers with experienced in design and research.
S-Type Tubular Turbine, also known as shaft-extension turbine, adopts horizontal axial arrangement. The obvious structural feature is that the guide vanes are arranged at 65° to the centerline of the unit,
